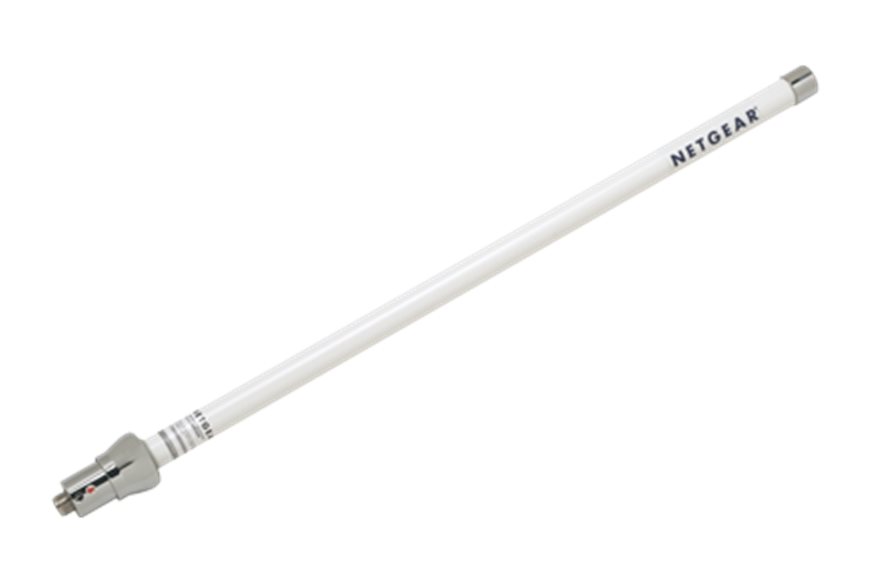

NETGEAR PROSAFE IND/ OUTDR 9DBI ANTENNA, ANT2409

OVERVIEW

Inside or out, we've got your wireless 802.11 b/g/n devices covered.

Optimal pre medium range indoor or outdoor point to multi-point applications, the ProSAFE® 9DBI Omni-Directional antenna provides extended point-to-multi-point coverage for wireless 802.11 b/g/n devices.

NETGEAR Warranty

• Tento produkt je backed by a NETGEAR limitovaný 1 rok Hardware Warranty.
• http://www.netgear.com/about/warranty/
• ProSupport Lifetime 24x7 Advanced Technical Support. (Remote diagnostics boli vypracované na základe našich technických odborníkov pre prostriedok resolution of technical issues).

TECH SPECS

Product Number

• ANT2409

Wireless Signal

• IEEE 802.11g

Typical Application

• Indoor/outdoor

Maximum Outdoor Range*

• 11.5 km

Frequency Range

• 2400 - 2485 MHz

Gain**

• 9 dBi

Beam Width

• Horizontal 360° Vertical 30°

Polarization

• Vertical

Operating Temperature

• -30o to 80o C (-22o to 176o F)

Dimensions

• 625 x 75 x 56 mm

Weight

• 0.9 kg

Connectors

• Antenna - Reverse N female
• Lightening Arrestor - Reverse N female
• Adapter - Reverse SMA

Package Contents

• Indoor/Outdoor 9 dBi Omni-directional
• Antenna - ANT2409 (cable required, sold separately)
• Wall and pole mount brackets and hanging materials
• One reverse N typ to reverse SMA adaptér
• 2 m low-loss antenna cable (connection for lightening arrestor)
• Lightening arrestor
• Installation guide and Warranty/support card

Ordering Information (all regions)

• ANT2409-20000S

WEBSITE

• Technical specification: http://www.netgear.com/business/products/wireless/accessories/ant2409.aspx#tab-techspecs
